ZYA××-S064,S164,V205,V300
This antenna can be used in abroad range of situations such as navigation and the measurement and control ofhigh-speed trains and cars. It has the merit of small size, attractiveappearance and high reliability.
AntennaCharacteristics
LNA
Frequency Range
GPS L1/GLONASS L1/ B1/B3 (optional)
Gain
26, 36, 40dB (optional)
Feed points
1
Noise Figure
≤2.0dB
Impedance
50Ω
Output V.S.W.R.
≤2.0
Polarization mode
RHCP
Operating Voltage
3.3~12VDC
Antenna axial ratio
≤3dB
Operating Current
<40mA
≤1.5
Max. Gain
MaximumGain
≥3.5dBi
Structural characteristics
Working environment
Storage temperature
-55℃~+85℃
Operating temperature
-40℃~+85℃

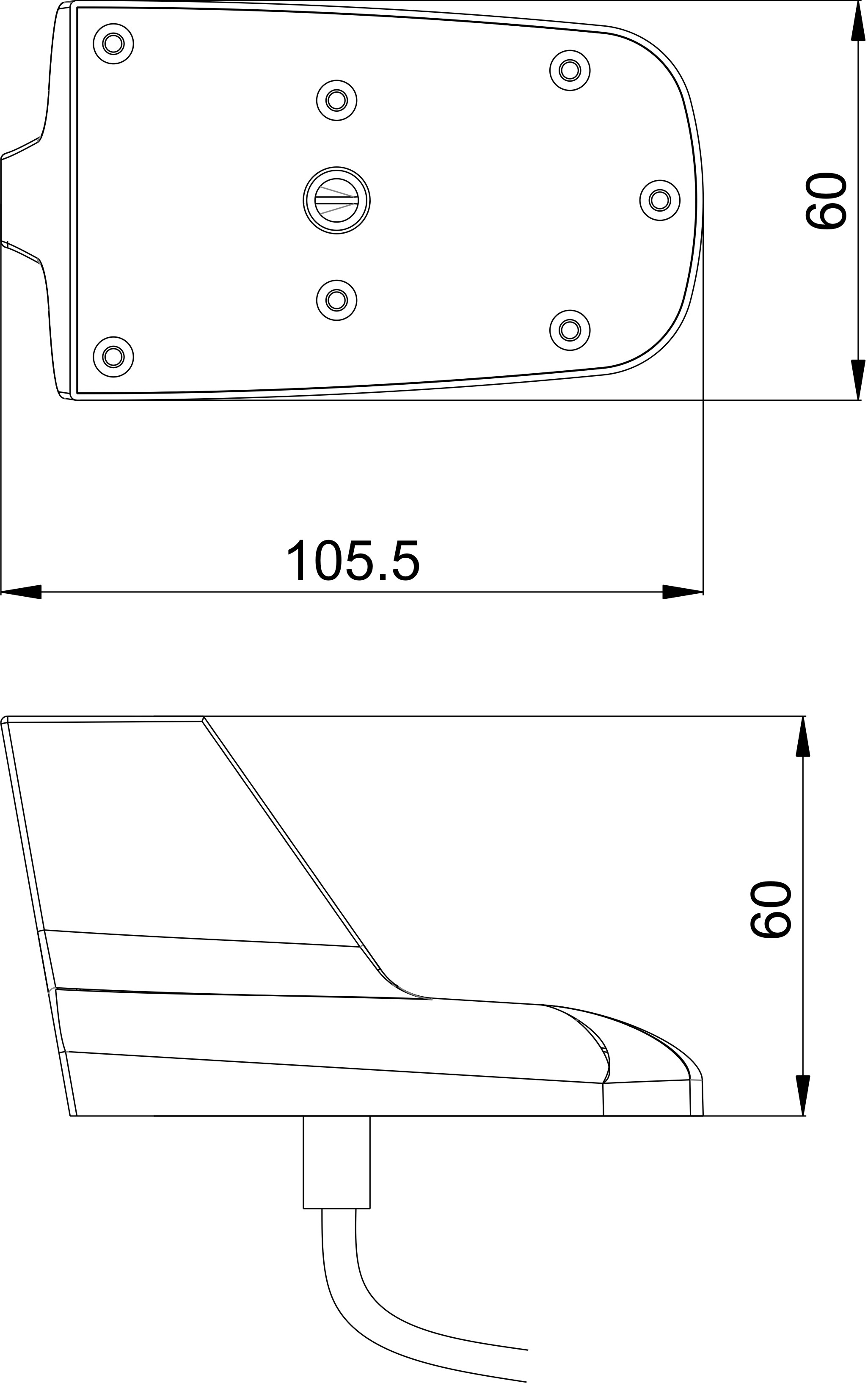

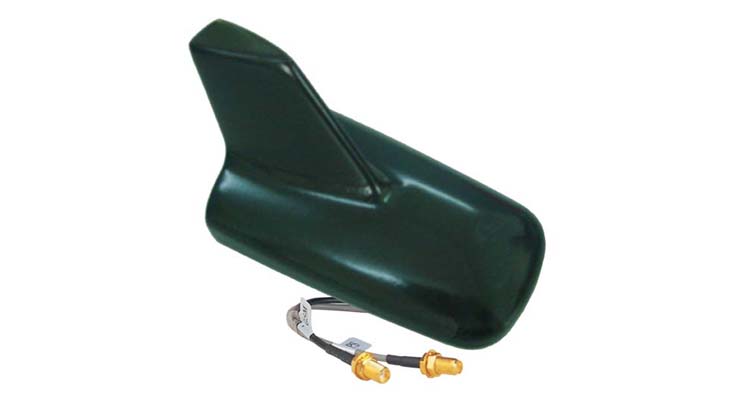

ZYA××-S064:
ZYA××-S164:
ZYA××-V205:
ZYA××-V300:
